IVECO Karel 1.0 | 3D files

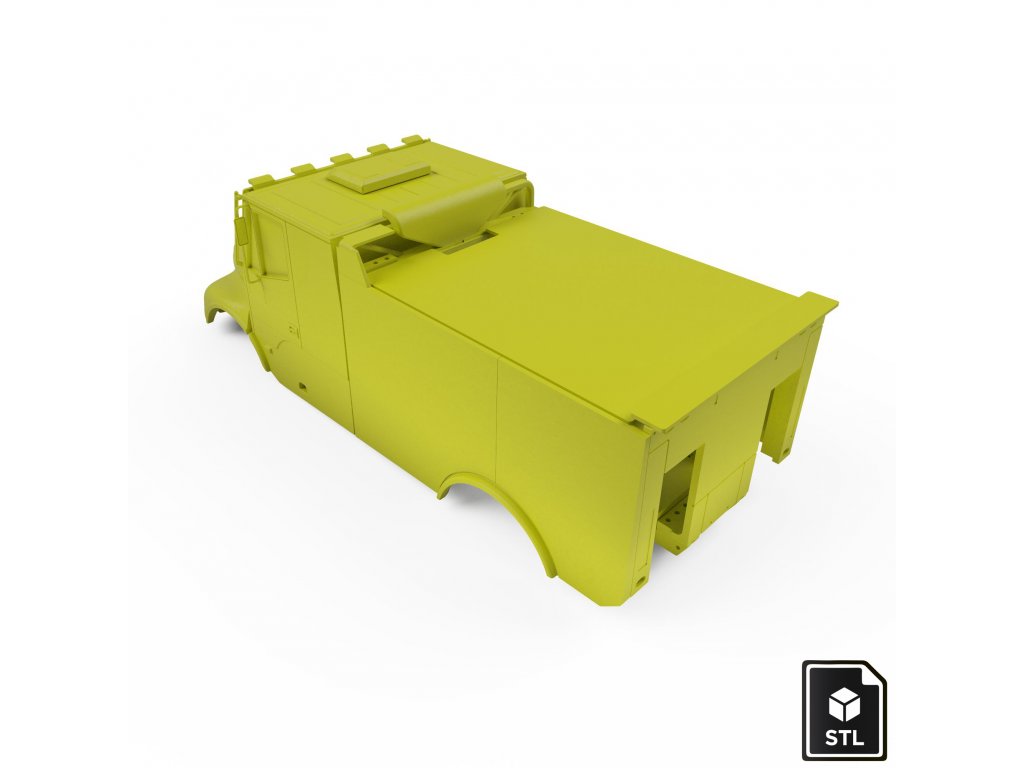

STL files for 3D printing of a IVECO truck model in 1:12 scale
The files are ready to be attached to the frame of our construction.

The files contain:

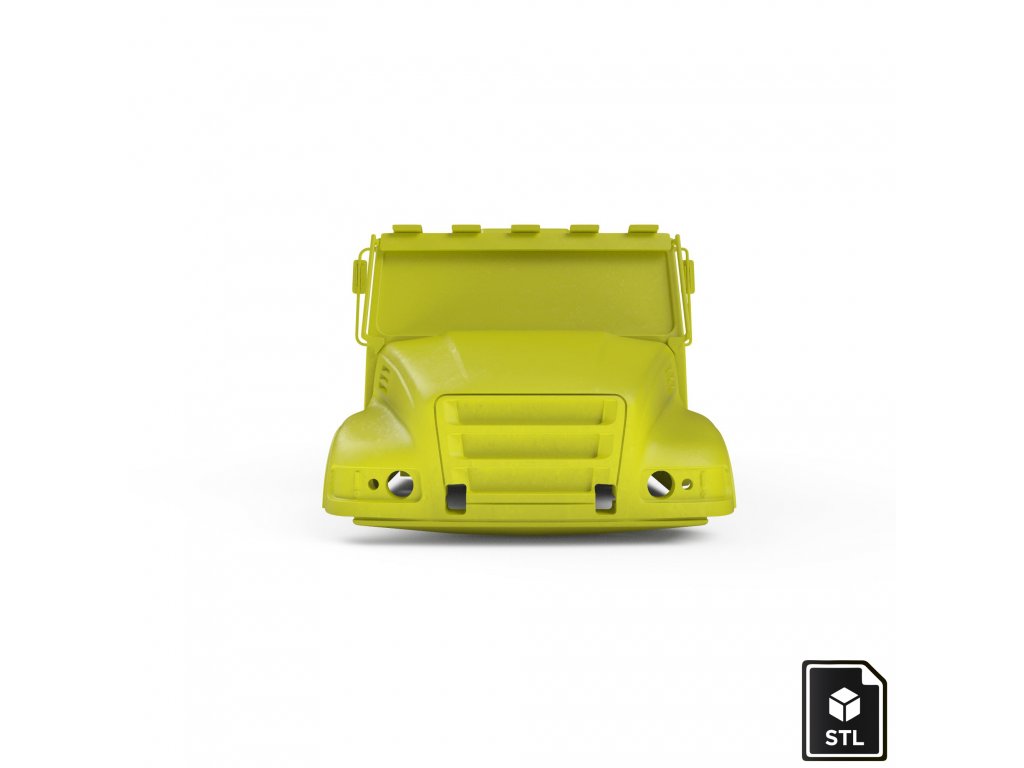

• IVECO - cabin
• IVECO - cabin - roof
• IVECO - cabin - side panel L
• IVECO - cabin - side panel R
• IVECO - cabin - roof suction
• IVECO - cabin - dashboard
• IVECO - cabin - floor for crew
• IVECO - cabin - sun visor
• IVECO - cabin - light ramp - scale model
• IVECO - cabin - external protective frame L + R
• IVECO - cabin - inner protective frame L
• IVECO - cabin - inner protective frame R
• IVECO - cabin - steering wheel
• IVECO - cabin - mirrors L + R
• IVECO - cabin - dashboard parts
• IVECO - motherboard 1 of 2
• IVECO - base plate 2 of 2 cabins
• IVECO - base plate - superstructure 1 of 2
• IVECO - base plate - superstructure 2 of 2
• IVECO - rear eyes behind the frame
• IVECO - box for light module
• IVECO - engine cover
• IVECO - superstructure - side panels L
• IVECO - superstructure - side panels R
• IVECO - superstructure - upper structure
• IVECO - superstructure - top cover
• IVECO - superstructure - upper corner behind the cab L
• IVECO - superstructure - upper corner behind the cab R
• IVECO - superstructure - air intake
• IVECO - superstructure - eye for overturning (print 2 pcs)
• IVECO - superstructure - wheel arch L
• IVECO - superstructure - wheel arch R
• IVECO - superstructure - spoiler
• IVECO - superstructure - rear cover
• Light - cover - 2 pcs (PETG - transparent RED)
• Light - cover - 2 pcs (PETG - transparent)
• Light - dish - 4 pcs (PLA - SILK Silver)
• IVECO - electronics holder under the L + R cab

The dimensions of the folded truck are approx .:

• 560 mm length
• 220 mm width
• 320 mm height

3D printing

• Material: up to 3 kg PLA, E.P. or PET-G
• Print time: + - 220 h
• Layer height: 0.3 mm for larger parts. Other 0.2 mm
• Filling: at least 30%
• 3 perimeters
• The largest dimension on one side is 216 mm
• Minimum printing area of ​​the printer 220 x 200 mm
